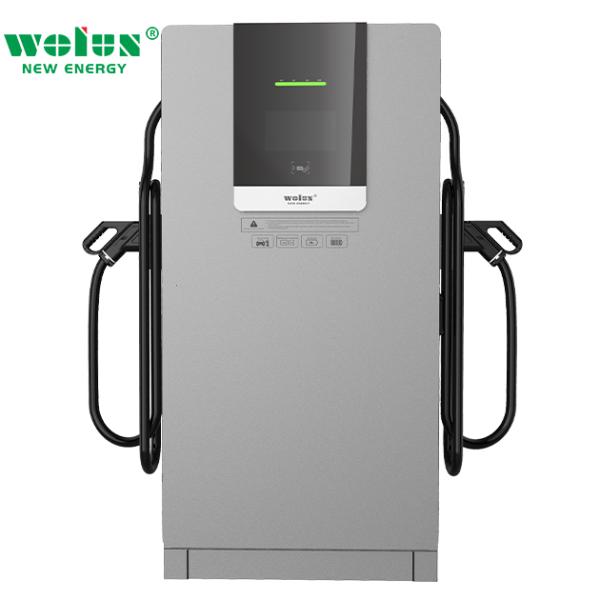

DC Charger 320 kW

The 320kW DC Charger is a high-performance EV fast charging solution designed for commercial charging stations, fleet depots, highways, and public parking facilities. It delivers ultra-fast charging, intelligent power management, and reliable operation to meet the growing demand for electric vehicle infrastructure.

SKU Code: CK-SDC-320-STD
Model: CK-SDC-320-STD
Categories: Dc fast charging piles

Get Quote Contact Us

CE · TÜV · OCPP Certified

Quality Warranty

Global Shipping

Bulk or project order? Contact us for project pricing.

• High-power 320kW DC fast charging for reduced charging time • Intelligent power distribution for optimal charging efficiency • Supports CCS1, CCS2, NACS, and CHAdeMO standards (optional) • OCPP-enabled remote monitoring and smart charging management • Advanced safety protection including overvoltage, overcurrent, overheating, short-circuit, and leakage protection • Durable IP54/IP55-rated enclosure for indoor and outdoor installations • Suitable for commercial charging stations, fleet operations, highways, and public EV infrastructure • OEM & ODM customization services available

Project	Parameter
Charging interface	CCS1/CCS2/GBT/CHAdeMO
Shell material	SPCC carbon steel
Ac input voltage	380V±15%/400V±10%/480V±10%, 3P+N+PE
Ac input frequency	50Hz/60Hz
Maximum output voltage	CCS DC 1000V, GBT DC 1000V, CHAdeMO DC 500V, 3P+N+PE
Maximum output current	CCS 300A, GBT 250A, CHAdeMO 125A
The number of gun tips	Dc ×2
Protection grade	IP55
IK Impact resistance grade	IK10
Working temperature	-25℃ to +50℃
Storage temperature	-40℃ to +70℃
Communication protocol	Ocpp 1.6J (Upgradable to OCPP2.0)
Human-computer interaction	10.1-inch LCD display
Authorization method	RFID card swiping, APP, POS terminal
Installation method	Floor-standing
Cable length	5 meters or 7 meters (optional)
Function configuration	Ethernet/RS485/WIFI/4G communication (customizable)
Noise	< 60dB
Applicable altitude	≤2000 meters
Overall dimensions (length × width × height)	1010×770×1780mm
Overall weight of the machine	≤300kg
Charging interface standard	DIN70121/DIN70122/ISO15118
Certification certificate	TUV, CE

Specifications
Charger Type	DC
Connector	Type 2
Connector	GB/T
Power Range	60–400 kW
Cooling	Air-Cooled
